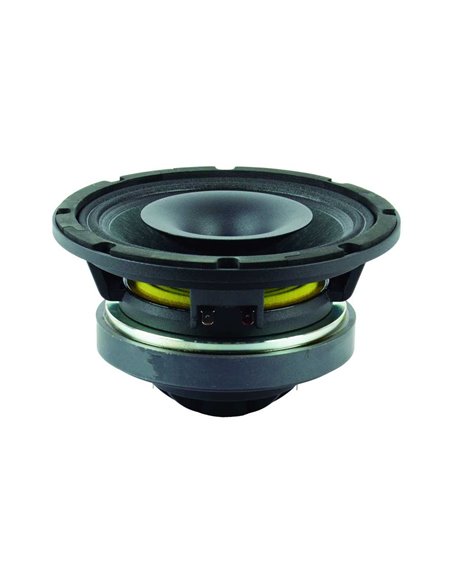

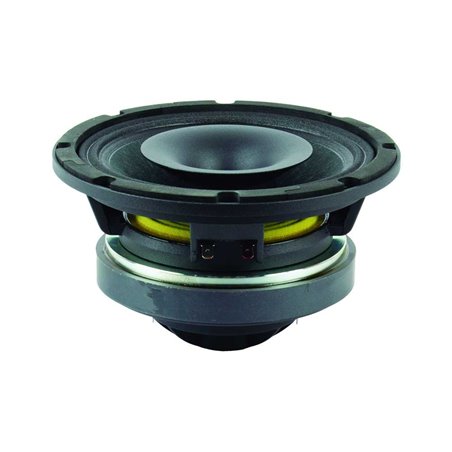

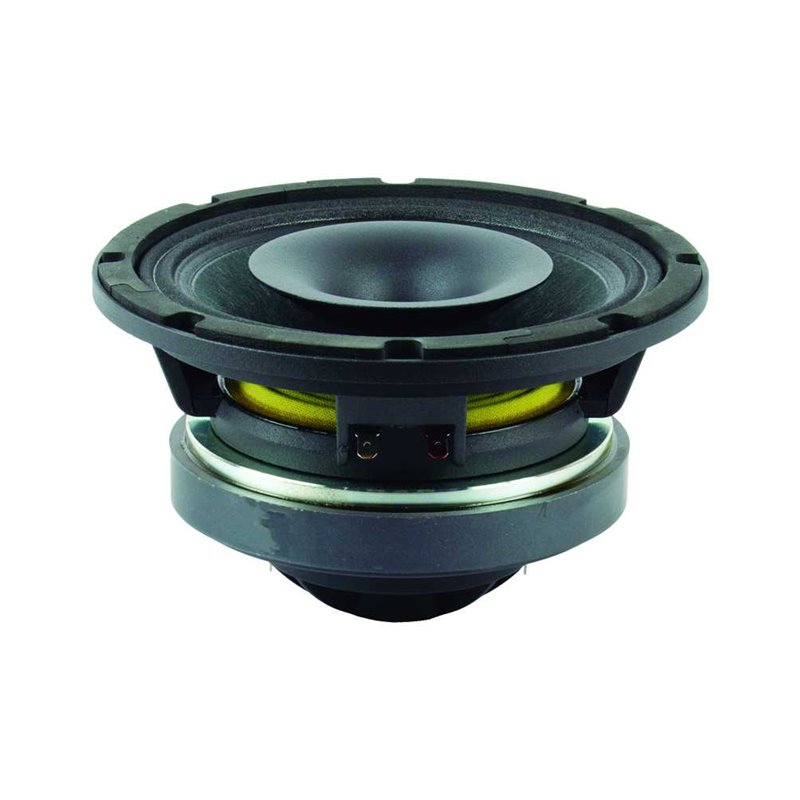

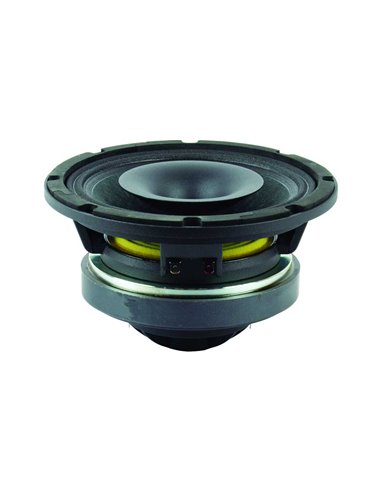

8CX300Fe

TECHNICAL SPECIFICATIONS Nominal diameter 200 mm 8 in Nominal impedance LF/HF 8/16 ohm Minimum impedance LF/HF 6.6 / 10.1 ohm Power capacity LF/HF 300/50 W AES Program power LF/HF 600/100 W Sensitivity LF/HF 95/105 dB 1W/1m @ ZN Frequency range 90-20000 Hz Recom. crossover frequency 2 kHz or higher (12dB/oct min slope) Voice coil diameter LF/HF 62/44 mm - 2.5/1.75 in BL factor 9.6 N /A Moving mass 0.020 kg Winding length 15 mm LF Recone kit ref. 5M8CX3FE8 HF diaphragm ref. 5MCD106
