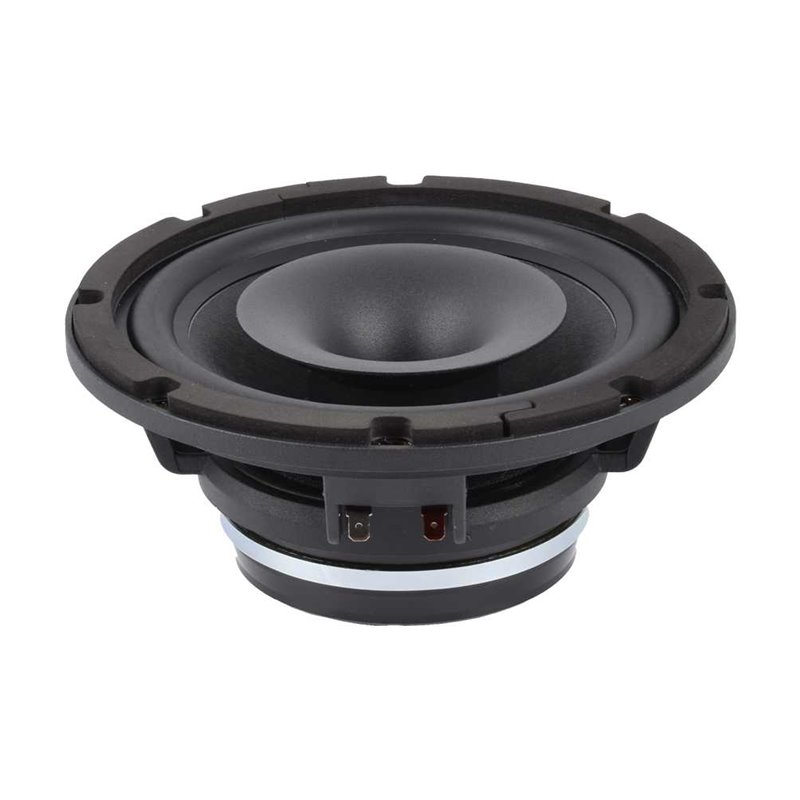

8CX300Nd/N

TECHNICAL SPECIFICATIONS Nominal diameter 200 mm 8 in Nominal impedance LF/HF 8/8 ohm Minimum impedance LF/HF 5.3/5 ohm Power capacity LF/HF 250/50 W AES Program power LF/HF 500/100 w Sensitivity LF/HF 96/104 dB @ 1w @ 1m Frequency range 60-20000 Hz Recom. crossover frequency 1.5 kHz or higher (12dB/oct min slope) Voice coil diameter LF/HF 62/44 mm - 2.5/1.75 in Dispersion (conical) 70º BL factor 9.4 N/A Moving mass 0.012 kg Winding length 15 mm Xdamage pp 24 mm LF Recone kit ref. 5M8CX3ND8 HF diaphragm ref. 5MSMC220PM48
